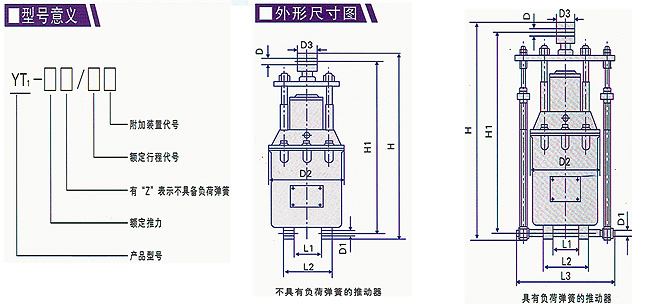

■YT1系列电力液压推动器技术参数及外形尺寸mm |
型号 | 额定推力kg | 额定行程mm | 电机功率kw | 额定电压v | 额定电流A | 动作时间S | 频率c/h | D | D1 | D2 | D3 | H | H1 | L | L2 | |
上升 | 下降 | |||||||||||||||
YT1-18Z/2 | 18 | 25 | 0.06 | 380 | 0.28 | 0.6 | 0.4 | 720 | 12 | 12 | 137 | 25 | 343 | 321 | 25 | 50 |
YT1-25Z/4 | 25 | 40 | 0.08 | 380 | 0.3 | 0.7 | 0.4 | 720 | 12 | 16 | 154 | 25 | 386 | 360 | 32 | 64 |
YT1-45Z/5 | 45 | 50 | 0.12 | 380 | 0.39 | 0.7 | 0.4 | 720 | 16 | 20 | 178 | 30 | 496 | 460 | 47 | 94 |
YT1-45Z/6 | 45 | 60 | 0.12 | 380 | 0.39 | 0.7 | 0.4 | 720 | 16 | 20 | 178 | 30 | 496 | 460 | 47 | 94 |
YT1-90Z/8 | 90 | 80 | 0.25 | 380 | 0.62 | 0.8 | 0.5 | 720 | 20 | 25 | 210 | 40 | 600 | 555 | 60 | 120 |
YT1-125Z/10 | 125 | 100 | 0.4 | 380 | 0.98 | 0.75 | 0.6 | 720 | 25 | 25 | 254 | 50 | 745 | 695 | 40 | 90 |
YT1-180Z/10 | 180 | 100 | 0.4 | 380 | 0.98 | 1 | 0.6 | 720 | 25 | 30 | 254 | 50 | 820 | 765 | 85 | 170 |
YT1-180Z/12 | 180 | 120 | 0.4 | 380 | 0.98 | 1 | 0.6 | 720 | 25 | 30 | 254 | 50 | 820 | 765 | 85 | 170 |
YT1-320Z/12 | 320 | 120 | 1.1 | 380 | 2.5 | 0.9 | 0.9 | 720 | 35 | 35 | 375 | 55 | 877 | 815 | 100 | 190 |
YT1-320Z/20 | 320 | 200 | 1.1 | 380 | 2.5 | 2.4 | 2 | 720 | 35 | 35 | 375 | 55 | 957 | 895 | 100 | 190 |
型号 | 弹簧制动力kg | 额定行程mm | 电机功率kw | 额定电压v | 额定电流A | 动作时间S | 频率c/h | D | D1 | H | D3 | H1 | L1 | L2 | L3 | |
上升 | 下降 | |||||||||||||||
YT1-25/4 | 20 | 40 | 0.08 | 380 | 0.3 | 0.7 | 0.4 | 720 | 12 | 16 | 408 | 25 | 380 | 32 | 64 | 228 |
YT1-45/6 | 40 | 60 | 0.12 | 380 | 0.39 | 0.7 | 0.4 | 720 | 16 | 20 | 495 | 30 | 460 | 47 | 94 | 266 |
YT1-90/8 | 70 | 80 | 0.25 | 380 | 0.62 | 0.8 | 0.5 | 720 | 20 | 25 | 600 | 40 | 555 | 60 | 120 | 320 |
YT1-125/10 | 90 | 100 | 0.4 | 380 | 0.98 | 0.75 | 0.6 | 720 | 25 | 25 | 745 | 50 | 695 | 40 | 90 | 390 |
YT1-180/12 | 105 | 120 | 0.4 | 380 | 0.98 | 1 | 0.6 | 720 | 25 | 30 | 820 | 50 | 765 | 85 | 170 | 420 |
